ONGC MIS
Management Information System (MIS) is an integration of Tags Monitoring, Reports, Dashboard, Graphs and Alarm Management. MIS Applications Developed by DreamSoft are Customized to the Client needs. We present herewith Case Study for ONGC's MIS Application Developed by us. Purpose of application is a develop a web interface which will help user to monitor real time parameters from remote computer using web interface. Scope of Application will be to communicate with OPC DA Tags and fetch real time data via a Middle ware layer which will communicate with OPC Server and pass data to web application.

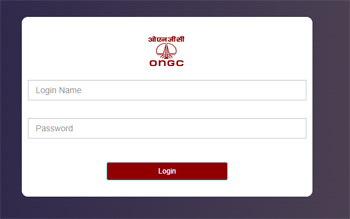

Login
Login Screen where Users will Login with their Login Name and Password which are defined in the Application in User Master.

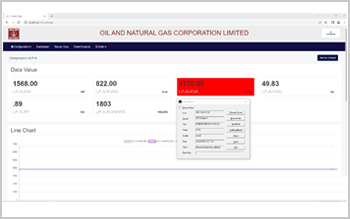

Dash Board With OPC Realtime Value
For Specific Tags which are defined, their Real Time Values will be displayed on the Dashboard. Line Chart will show Data Values in Graphical View.
Dashboard

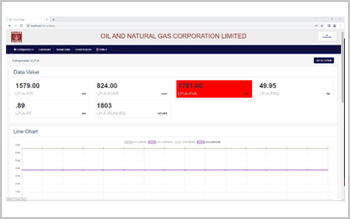

Another View of Dashboard with Red Colored Tag whose Value has gone below the Min. Tag Value Defined.
Bar Chart

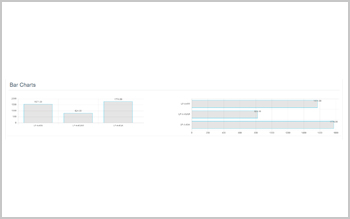

Bar Charts for Various Tag Values in terms of Graphics Representation.

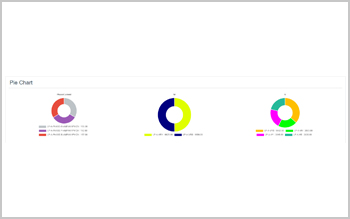

Pie Chart
Pie Charts for Various Tag Values in terms of Graphics Representation
Guage Chart

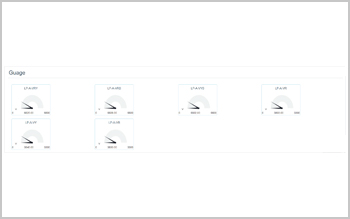

Gauge Charts for Various Tag Values in terms of Graphics Representation
Unit Master

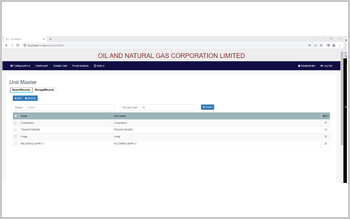

Definition of Main Units in Application

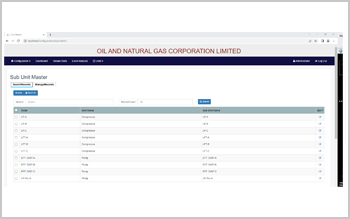

Sub Unit Master
Definition of Multiple Sub Units Under Main Units in Application
Tag Source

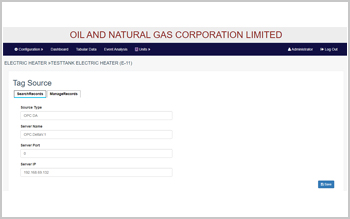

Definition Tags Source with OPC Type, Server Name, Port and IP Information

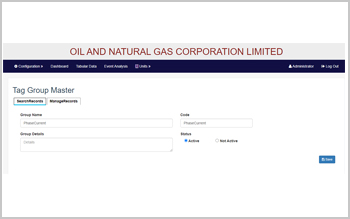

Tag Group
Definition of Tags Group for Tags Grouping
Tag Master -> Search Records

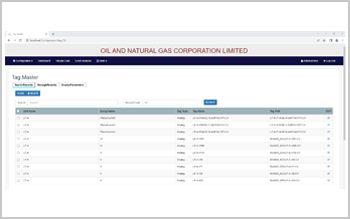

Tags Master with Group Linking, Tag Type, Tag Name and Path. Multiple Tags can be configured in this Application.

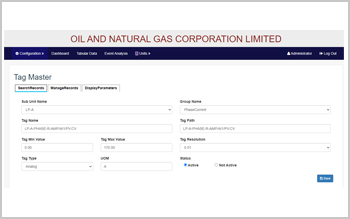

Tag Master -> Manage Record
Tag Master Form indicating various Tag Details to be provided like : Tag Minimum Vaule, Tag Max Value (for Monitoring), Tag Resolution (For Graph and Display), Tag Type, Unit of Measurement, Status of the Tag etc.

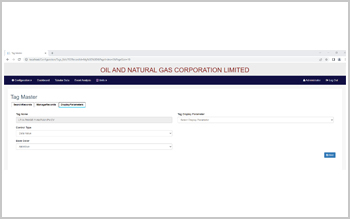

Tag Master ->Display Parameters
Tags Definition with Various Display Parameters
Change Password

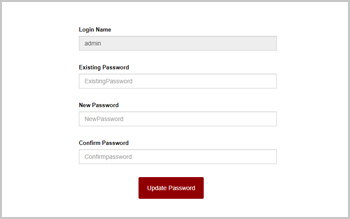

Change Password Screen
Tabular Data

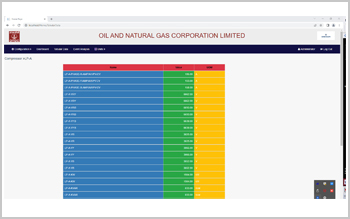

Display of Tags in Table with Tag Name, Value and UOM

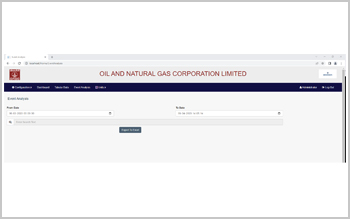

Event Analysis
Event Analysis Report Screen

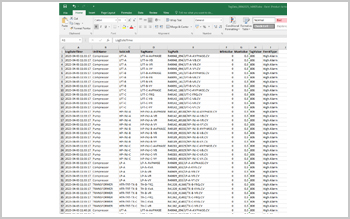

Event Analysis Excel Export
Event Analysis Report in Excel with Various Fields of Tags
Unit Selection Menu
Various Units and Sub Units displayed on Screen whose Tags user wants to View
Brief Features
Web Application Module
- Critical Parameter
Unit-1
o ON/OFF STATUS
o TRIP STATUS
- Maintenance Room Area
First Floor Lobby
o Temperature
o Humidity
Safety Room Area
o Temperature
o Humidity
Important Fields will be as below

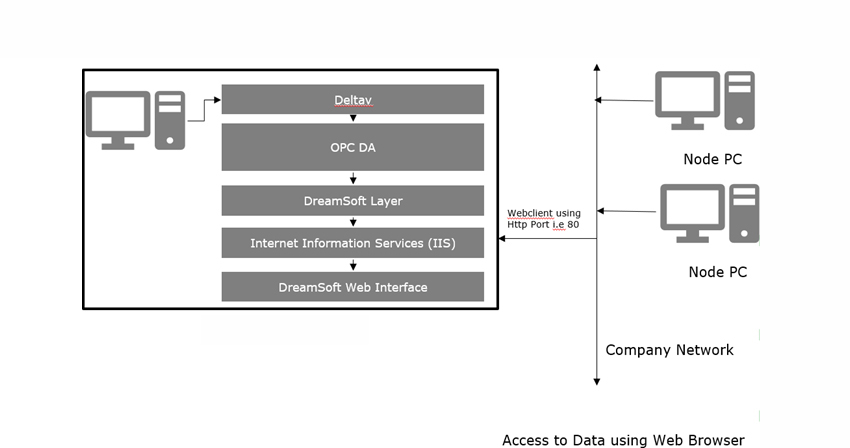

Background Service: DreamSoft service will poll OPC DA Server every minute andmonitor parameter value which will be displayed on Web App.
a. DeltaV : Deltav application will be under Emerson scope with OPC Server enabled to fetch data and pass to Web Application.
b. OPC DA : OPC DA will be main source of Data which will be provide real time data to Web Application.
c. DreamSoft Layer : This will run as background service which will monitor defined tags and will all change event of tags will be logged for real time monitoring.
d. Internet Information Services (IIS) : IIS will enable web application to execute via Web Browser.
e. DreamSoft Web Interface : This application will provide user interface to web client via Browser.
Note: OPC Server PC should be accessible via Browser using Port 80. Prerequisite will be IIS should be enabled on OPC Server. i.e. if http://OPCServerName or http://192.168.0.88 is type from node computer IIS Welcome page should be displayed.
